- Place of Origin: Shandong
- Brand Name: huan yi

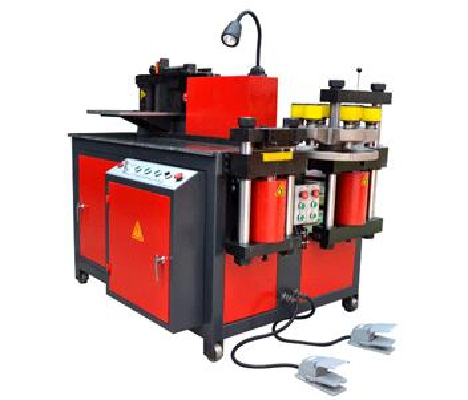

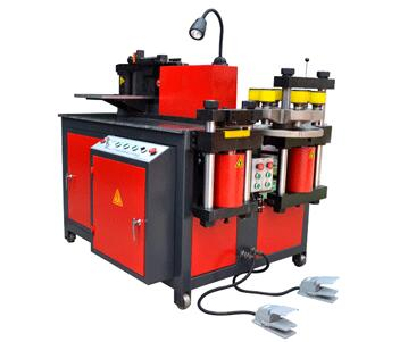

- Model Number: Bus processing machine
Technical parameter:
function
project
MX-303E
MX-503E
Punching process
Maximum punching force (KN)
Three hundred
Five hundred
Punching machining range (mm)
Phi Phi 25 - 4.3
Phi Phi 34 - 4.3
Maximum working thickness (mm)
Twelve
Sixteen
Maximum processing width (mm)
One hundred and fifty
Two hundred and fifty
Shearing process
Maximum shear thickness (mm)
Twelve
Sixteen
Maximum shear width (mm)
One hundred and fifty
Two hundred and fifty
Flat bending process
Maximum bending force (KN)
Three hundred
Five hundred
Maximum flat width (mm)
One hundred and fifty
Two hundred and fifty
Maximum flat bending thickness (mm)
Twelve
Sixteen
Vertical bending process
Maximum vertical bending width (mm)
100 (10 thick)
120 (10 thick)
Minimum vertical angle
90 degrees
90 degrees
Outline dimension
Mm (mm)
1750 * 1350 * 1260
1850 * 1500 * 1400
Main motor power
KW (kw)
3 x 4
3 x 5.5
Machine weight
Kg (kg)
One thousand and four hundred
One thousand nine hundred and fifty
