- Place of Origin: Shandong
- Brand Name: huan yi

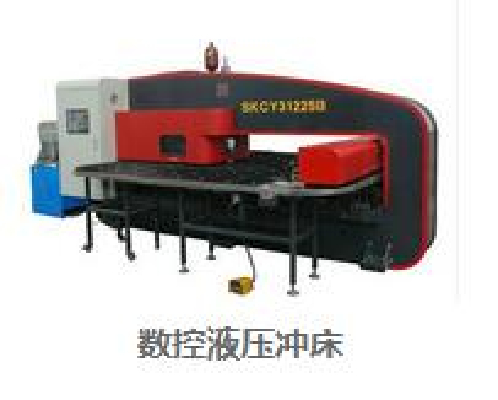

- Model Number: SKCY31225B/31250B
technical parameter
Parameter name
Company
SKCY31225B
Nominal pressure
KN
Three hundred
Maximum size of machined workpiece
Mm
1250 * 2500/1250 * 5000
Maximum machining thickness
Mm
Six
Maximum punch diameter
Mm
With 88.9
Maximum number of stroke
H.p.m
400/800
Max stroke of slide block
Mm
Forty
Maximum moving speed of X/Y axis
M/min
Sixty
Maximum feed rate
M/min
Sixty
Maximum speed of turret
R/min
Thirty
Main motor power
KW
Eleven
Machining accuracy
Mm
0.10
Mode number
Set
24/32
Numerical control axis
Axes
3/4 axis (X, Y, Z, C)
Machine dimension
Mm
4500 * 3300 * 2100
Machine weight
Ton
12/14
