- Place of Origin: Shandong
- Brand Name: huan yi

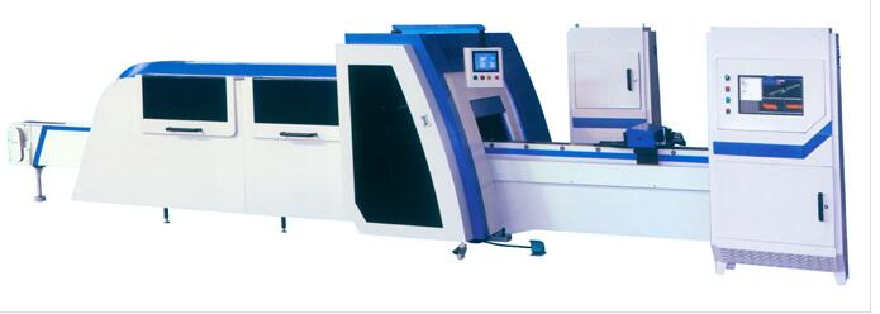

- Model Number: CNC punching line bus
One, the main functions: cut copper and aluminum bar, punching (all round hole, square hole, and shaped groove)
Two, introduction and main features:
1, this machine is the electric power industry, high and low voltage, special processing equipment, such as copper and aluminum busbar busbar industry with high efficiency, low energy consumption, labor saving, high processing precision, convenient operation, beautiful appearance and other characteristics.
2, the equipment has the original processing principle and processing mode, completely different from the previous processing concept, high degree of automation, daily processing capacity of more than a few tons, is the first choice of ideal equipment bus industry.
3, the long copper and aluminum row can realize one-time clamping, without manual intervention, through the automatic repeat switching clamp, can complete punching workpiece.
4, can choose four punch mould cut, cut cut five red, six red line type mold base, also may be required to install embossed function.
5, a single pole type shear shearing tool, no waste after shearing.
6, the control part is composed of Japan's PLC and three sets of Japanese servo motor, transformer, touch screen, operation platform and auxiliary components, the performance is stable and reliable.
7, the man-machine interface, the operation is simple, reflect the running state of the program in real time.
8, the die frame using ductile iron material, good wear resistance, to ensure the long-term use in the process of punching up and down the mold of the heart.
Three, data parameters:
ZLMXCJ--30
1 nominal pressure: 300KN
2 maximum processing size: 12x125mm
3 punching range: - 4.3-25mm
4 maximum can be installed in a number of modules: shear mode 4, punching die 1
5 stroke: stamping spindle: 40mm, 100 times / min
Feed X axis: 2000mm, 35 m / min
Feed Y axis: 600mm, 20 m / min
Punching cylinder Z axis: 130mm, 15 m / min
6 maximum allowable plate: 6000mmx210mmx12mm
Four, the main parts selection:
1 main motor: cohesion Kuwait
2: Rexroth hydraulic components
3 pneumatic components: South Korea
4 guide screw: THK
5 servo system: Japan
6 touch screen: Taiwan screen
Five, random accessories:
Punching die eight sets, a pair of scissors, 1 sets of random maintenance tools, manuals, 1 sets of qualified certificate.
Six, product service:
1 one year warranty period, any quality problems within the warranty period of 24 hours on-site service.
2 of all mold parts is guaranteed for three months, the quality problems within three months, the unconditional return.
3 free home delivery, free debugging training, until the church.
