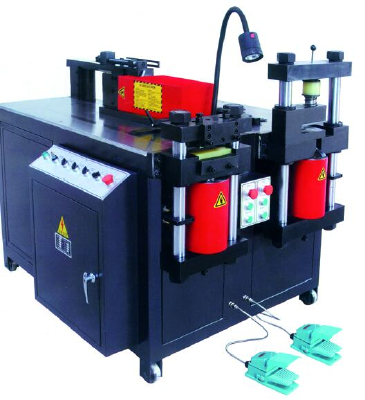

This series bus processing machine has punching, cutting, folding three working units, each unit of the work schedule can be easily adjusted, shorten the processing time, improve production efficiency.

The machine function is the processing of different specifications of copper, aluminum bar, just use the corresponding processing unit, can be convenient for copper, aluminum row punching shear (hole, waist type holes), fold bending, vertical bending, embossing, pressing, twisting, pressing cable joints and other various processing. You can also complete the flattened, twisted by replacing the die, pressure on cable joint, copper for the cutting, punching, bending and flattening, and other special processing.

The shear cell using a common file style cut, cut flat bed angle, no burr, beautiful appearance, no shear waste.

The punching unit is a square integral frame structure with high strength and high strength. The mould and the mould frame adopt the double guide position to ensure that the upper die and the lower die are absolutely right, the concentric degree of the mould is improved, and the service life of the die is prolonged.

Bending unit with closed structure, make it more uniform curved and embossed in the processing, greatly improving the repetitive positioning accuracy during mass production, and prolong the service life, the bending unit with horizontal machining, processing is more safe and convenient.

There are four wheels on the machine, can be moved to the required place. Manual button and foot switch two operating mode. According to user requirements can be configured with different special shape processing mold complete users.
